The main features
? machine adopts mitsubishi PLC, touch screen, servo drive, double groove super precision groove center distance is guaranteed by servo, stable and reliable.
? machine tool parameter setting is input by touch screen, convenient for debugging and management
? the use of vector frequency converter, low frequency characteristics make fine ultra better
? the workpiece adopts ceramic centerless support, the end face is pressed, and the eccentric machine is preset
? the workpiece spindle is lubricated by oil mist; The workpiece speed and oscillation frequency are automatically regulated by frequency converter
? the workpiece is superfine for the second time in two working positions, and the stone is coarse and fine for the second time under pressure, and the loss is automatically compensated and the failure is automatically alarm
? automatic packing and automatic feeding
? total machine power: 8.0kw
? work efficiency: 7S/ piece

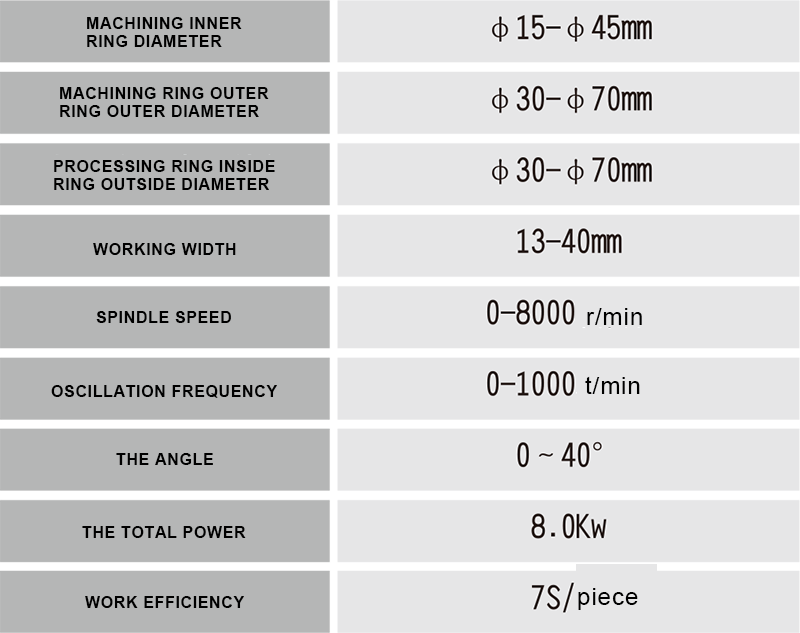

Technical parameters
