The main features
? the machine adopts mitsubishi PLC, frequency converter and touch screen, the system is stable and reliable, and the parameter setting is input by touch screen, which is convenient for debugging and management
? the workpiece adopts ceramic centerless support, the end face is pressed, and the eccentric machine is preset
? the workpiece spindle is lubricated by oil mist; The workpiece speed and oscillation frequency are regulated by frequency converter
? the workpiece is superfine in the single position, coarse whetstone, fine secondary pressure, and automatic compensation for loss.
? automatic packing and automatic feeding.
? the inner and outer rings can be processed at the same time.
? total machine power: 12KW
? work efficiency: 40S/2 pieces

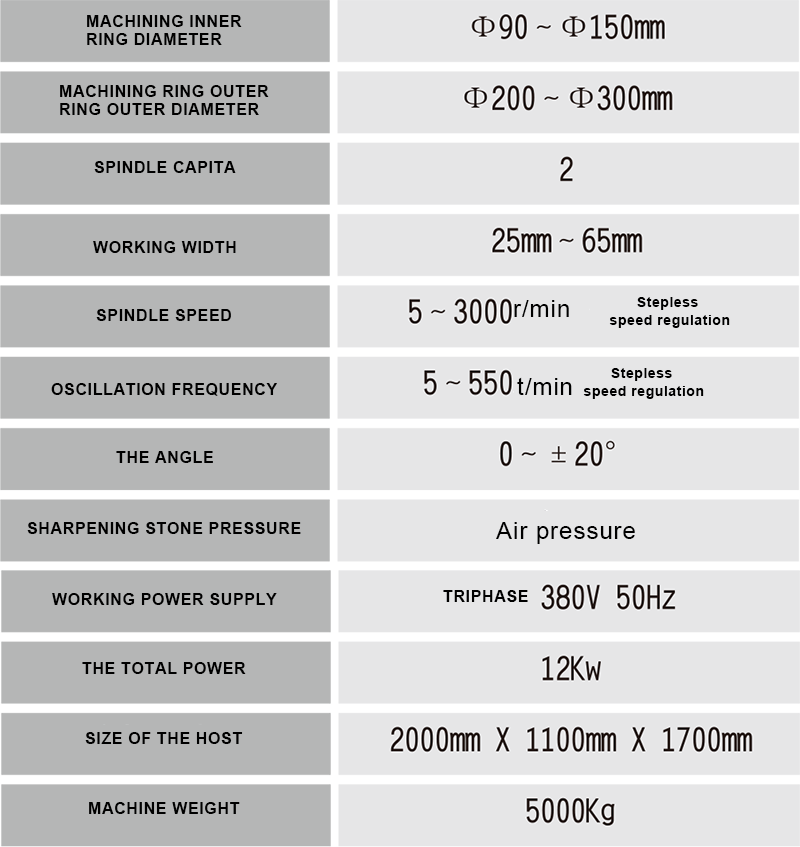

Technical parameters
